2.18 Notes on Bi-Polar

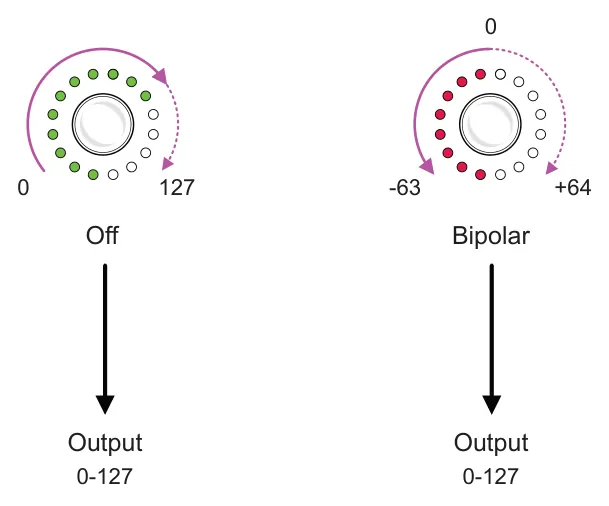

The controller destination > display settings include a bi-polar option. The knob behaviour can be set to display a normal 0 to 127 range or a bipolar -63 to 64 range. The LED ring will represent the value as well as the display screen. This setting affects only the display and control behaviour. In both instances the physical output would be the same, for example for CC, both are ranged over 0-127.
